VXDIAG Vcx Nano Ford Review

VXDIAG Vcx Nano review on Ford and Mazda… here you go.

VXDIAG VCX NANO is the same as VCM2 with a single board (which is very bad clone of VCM2).

By satria_wr

Vehicle: 2014 Ford Ecosport 1.5L Ti-VCT 110hp

My clone vcm2 was able to update the module online.

The single board is known to brick module since it doesn’t have complete chip on it.

By Automate

Vehicle: 2010 Ford Fusion Hybrid

The VCX Nano I took apart seems to be a custom design to emulate in hardware part of the hardware/software of the VCM II but the driver is most important too. I did not take pictures but gently peeling down the stickers reveals 4 screws. Once inside it is a very simple board with a ST micro cortex M4 STM32F4 Series based micro controller doing the work. The FT serial to usb chip-set and some caps and a space that was blank for I assume either the WIFI or Bluetooth module. I googled the device and did see a Russian site where a guy took apart a VW version and it had more chips and and older generation micro-controller.

Soldering looks like reasonable quality surface mount and no hand work or redo’s.

By stvkram

Vehicle: 2003 Mazda 6 3.0 V6 220hp

I test this tool, i buy the wifi version. Ford/GM/Toyota/VW/JagLR all works with wifi or usb connection

By satria_wr

Vehicle: 2014 Ford Ecosport 1.5L Ti-VCT 110hp

I own VXDIAG VCX Nano WiFi. I use IDS v103.xx fine without issue. Latest update of VXDiag gives it a better stability when doing programming.

Tony Back

Vehicle: Ford Focus

Well, I just took the chance and bought one.

Couldn’t figure out how to get WiFi working on it, so I installed the driver

for USB and used USB instead.

Forscan detected it as J2534, and no errors was reported.

It didn’t find as many modules as my Vlink adapter does, but it had

the same missing fuel trims for bank 2 for my Scorpio 24V

One hurdle with this device though – it is almost impossible to connect it

to the Scorpio, because the plug is a bit hidden, and this device is very big.

Anyone buying it should consider, if a small OBD2 extension cable is needed too.

By Yoda

Vehicle: Scorpio 2,9 24V 207HK 1997

I can add that regarding the VCX Nano for ford/mazda, I took mine apart and no bluetooth module is present. The bluetooth capabilities advertised on the main Allscanner site it not accurate. I can not speak for the WIFI version but I have the usb version and have used it with my 2003 Mazda 6 V6 and AFTER installing the “pass-thru” driver (J2534) it works perfectly and fast with FORSCAN.

By stvkram

Vehicle: 2003 Mazda 6 3.0 V6 220hp

Full chip high quality VCM II (SP177-C) is much better than VXDIAG NANO.

But be careful programming!

By ipy1975

Vehicle: 2015 Ford Mustang GT 5.0L V8

……

More VXDIAG Vcx Nano reviews will be updated here.

Free Download Mazda IDS V105.03 V105.02 V105 V104 ALL Here

Here you can free download ALL latest Mazda VCM IDS Software Update including: 05.2017 Mazda IDS V105.03, V105.02, V105, V104. Links are all working. No pass. Hope it helps!

Download Mazda IDS V105.03 (05.2017) here:

https://mega.nz/#!wJZygSAK!w-OAWbSWXSCc4sZl7pO_KR-Kc-vIdR9W_uf7xQyQWQA

Download Mazda IDS V105.02 (05.2017):

https://mega.nz/#!oIIlBY4C!2jsGXvGDZqx2YOCKNoMwv8L2eE_AzChDSpF-RNVbKXY

Download Mazda IDS V105 (04.2017):

https://mega.nz/#!zJUEGJQA!7i3Ml_AusyyyyybqPU9VYT29TAyzs6dAxi9Grluk3KM

Download Mazda IDS V104 (03.2017):

https://mega.nz/#!d95hGZaI!7j0gX4BNH_AtKuXkM6UPQE8exs84ZV9TgrS-_UrlzNs

Which tools are recommended to work with Mazda IDS?

Note: These Mazda IDS software are relatively newer, so below tool list is created only for your reference!

VCM IDS 3

Mazda VCM II IDS

VXDIAGVCX NANO Ford Mazda

VXDIAGMulti Diagnostic Tool for Honda Ford Mazda JLR

Ford IDS 105.01 VMware ALL Info: Review+ Error Solution+ Q&A

Ford IDS V105.01 VMware all info here for you:

Ford IDS 105.01 tested OK function and tools, Ford IDS 105.01 VM installation tips, Ford IDS error solution "Intel VT-x disabled", Ford IDS software Q&A.

Part 1: Which tools can I use with this Ford IDS 105.01 VMware? What functions are tested OK?

Ford IDS 105.01 VM compatible interfaces:

VCM IDS 3 (It can use latest Ford IDS 105.01-- confirmed by engineers)

VXDIAG VCX NANO for Ford/Mazda (Tested OK by users)

Ford VCM II Clone (Best quality, some yes, some no)

Ford IDS 105.01 Tested OK Reviews:

I did 6 module programming on a 2013 explorer yesterday and all OK!

Ford IDS worked great today. Programmed a few keys and flashed a PCM already. Working flawlessly. Hope it keeps it up.

Today I've programmed a Ford Focus blue key with this virtual machine and Ford VCM2. Tested ok!

I've used it on 2015 F-150 to enable Car Configuration Parameters without any problem

Tested also with latest VCX manager and updated firmware on the NANO => work great with my VCX NANO Ford

I can now confirm both of these images are working with the Allscanner VCX Brand. Not sure if it makes any different but I used the latest VCX manager from the website.

I can confirm also. I made persistent HDD, then I installed drivers, restart. I checked license of VXDIAG... Then non persistent and now is ok.

Part 2: How to install Ford IDS 105.01 VM correctly?

Download Ford IDS 105.01 VM from here:

http://blog.eobdtool.co.uk/free-download-ford-ids-105-01-for-vcm-ii-and-vxdiag-vcx-nano/

To be honest... Just turning non persistent off before the first start is all u need to do... And also click I moved it.

Leaving internet on doesn't matter.

In fact u need to keep it on if u wanna do programming from the server.

Ford IDS 105.01 VM installation tips for your reference:

Downloaded & extracted.

Opened in VMWARE 10. (In one of the first couple of lines in config file change the "12" to "10")

Clicked "I MOVED IT"

Turned of internet (don't know if it matters).

Turned off nonpersistent.

Started Up IDS 105.1 VMWARE

Plugged in OEM VCM and installed drivers.

Made cosmetic changes, performance changes to WIN7.

Opened IDS and made settings changes

Ran Shut down command in Guest System.

Turned nonpersistent back on.

Part 3: How to solve Ford IDS software error "Intel VT-x is disabled", "64 bit operation is not possible"?

Got the problem when run Ford IDS 105.01 in VMware machine:

This virtual machine is configured for 64-bit guest operating systems. However, 64-bit operation is not possible.

This host supports Intel VT-x, but Intel VT-x is disabled.

Intel VT-x might be disabled if it has been disabled in the BIOS/firmware settings or the host has not been power-cycled since changing this setting.

(1) Verify that the BIOS/firmware settings enable Intel VT-x and disable 'trusted execution.'

(2) Power-cycle the host if either of these BIOS/firmware settings have been changed.

(3) Power-cycle the host if you have not done so since installing VMware Workstation.

(4) Update the host's BIOS/firmware to the latest version.

all other images of IDS working without problem

need updating BIOS

Solution:

The error means you CPU isn't configured or capable of 64bit virtualization. Check your bios setting!

Change computer BIOS about virtualization that was disabled, change to enabled. Now IDS is working ok!

Part 4: IDS Ford software V105.01 Q&A

Q: What windows it works? And do I need a special winrar version to open the file ?

A: Windows 7/8/10 64bit all OK. Just use latest winrar version available from rarlab website.

Q: Help please! I have a VM ware IDS 105, but is asking for license?

A: Shouldn't ask if you click " I moved " it at first start!

Most of people license error come from clicking " I copied it" when u first start the VM.

You should click "I moved it".

Delete the VM.. unzip/ unrar again.

Start over.

Click "I moved it" then no issue anymore.

Q: Is there a way to accelerate this VMware? May I active some options for that?

A: This VM is using 1.5Gb so you will need at least 4Gb on your machine. CPU preferably an i5 processor. Allow more RAM, more CPU. but it won't ever be like a native machine.

Or try running defrag in VMware> HDD utilities

Hope it helps!

Quick link to ALL Ford IDS 105 compatible tools:

IDS VCM 3

VXDIAG VCX NANO Ford

Ford VCM 2 IDS

Mazda IDS V104 Ford IDS V105.01 Free Download (Key & module programming works)

Many thanks to the fly company engineers' long hard work, the Mazda IDS V104 Ford IDS V105.01 is finally tested working 100% OK on the VCM IDS 3 hardware. Here share the free download link and how-to instructions in Youtube Video.

Ford IDS v105.01 software freedownload (safe, no pass, crack)

Mazda v104 softwarefree download (safe, no pass, crack)

Works...

Windows XP (SP2 or later) Windows 7, win 8 and win 10

Obdii diagnosis……works

Mazda/Ford (smart) key programming……works (Automatically logs on to the ford IDs server)

Module programming……works (Automatically logs on to the ford IDs server)

Module reprogramming……works (Automatically logs on to the ford IDs server)

Ford and Mazda 2016……works

2017 Transit Auto & Transit AWD……works

How to use Ford IDS 3 for Ford Mazda (Youtube Video)

1. How to use Ford ids 3 for Ford Mazda without network

2. How to Use Ford IDS3 for Ford Mazda with Network

Related post:

Howto: VCM IDS 3 V104.04 do Mondeo key programming and module programming

4 Typical VCM2 clone SP177C SP177C1

There are 4 famous types of VCM2 clone Ford diagnostic interface, including the most populous VCM2 SP177C, SP177C1 (talked most in forums). Collect and share them here!

Vcm2 of high quality - it’s the BEST

The hottest VCM2 clone model: SP177C&SP177C1, seems the same as this

Vcm2 of good quality

Vcm2 of middle quality

Vcm2 of very bad quality

In summary, good vcm2 clones usually cost $150 around. Never believe in the cheapest but best-quality! You will get what you pay for.

Credits to http://mhhauto.com/Thread-VCM2-Ford-Diagnostic-Clone-Model-SP177C-SP177C1-Where-to-buy?page=2

How to do Mondeo module / key programming by VCM IDS 3 V104.04?

Have Ford Mondeo Duratech-HE/I4 Gasoline to do OBD test, key programming, module programming, reprogramming, service function, etc. Best tool to use is VCM IDS 3 V102.01 (or latest V104.04). This post topic: If you have a hard time installing the IDS software, this post can shed some light on "how to make the software 102.01 work”.



Mondeo vehicle to work:

vehicle: Mondeo

engine type: Duratech-HE/I4

Capacity: 2.3L

Transmission: automatic

Fuel type: Gasoline

ECU systems to work:

Body, Chassis, electrical, powertrain

Ford diagnostic & programming tool to use:

VCM IDS 3 software V104.04, €275

Use VCM IDS 3 V104.04 to achieve:

Basic diagnostic function, key programming, module programming, reprogramming, service

function.

Works on: Windows 10 machine

Nice features by using VCM IDS 3 V104.04: automatically logs on to the ford IDs server, key programming and Module programming works that VCM2 fails to do.

It's a new "pass thru" device.

How to use VCM IDS 3 V104.04 do work on Ford Mondeo Gasoline?

Note: Following videos and pictures displays IDS V102.02, newest software version is V104.04

1) If no internet connection, you need to use this video.

2) If with internet connection, need to choose this video.

Note:

Correct USB Serial Port (COM4).

IDS 3 module programming works, self test works, data logger works, OBD test modes and service function works.

Here pictures.

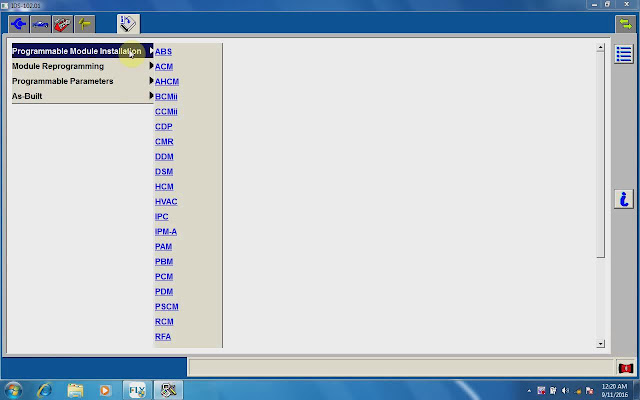

1) IDS 3 module programming works:

2)IDS 3 self test

3) IDS 3 data logger

3) OBD test modes and service function works i.e Powertrain system

Free download Ford IDS 105.01 for VCM II and VXDIAG VCX NANO

Here you can free download Ford IDS V105.01 VMWare with VCM II Manager for Ford VCM II clone and VXDIAG VCX NANO for Ford/Mazda! Newly released on 04.12.2017! Mega links as below:

Free Download Ford IDS V105.01 with VCM II Manager 2.3.85.7:

Part 1

https://mega.nz/#!l1UVBCLa!w1Out18LqVP3QIboAfa3YCmF6z6bF8W1Tb2vt8Pily0

Part 2

https://mega.nz/#!519CwI5I!V57SrxIcMAtp87lg3iv-zDKU0Ueu8T5jPBc9sdUg-5g

Password: nK6gE84

Thanks SCOTT’s sharing and try on your own risk!

Ford IDS V105.01 Compatible Interfaces:

Ford VCM II DiagnosticScan Tool

Ford VCM II scannersupport WIFI

VXDIAG VCX NANOFord

Ford IDS V105.01 Update Information:

Support WINDOWS 7, WINDOWS 8, WINDOWS 10

This version has the ability to download the very latest calibration software files from Ford’s server if you have an internet connection available at the time of connecting to vehicles

Reading and decoding fault codes

Deleting fault codes

Displays system current parameters in digital form

Combined displaying of data

Logs keeping - writing and keeping of digital parameters in memory

Special function: changing of permissible settings of blocks, programming etc.

Ford IDS V105.01 Q&A:

Q: Is this Ford IDS 105.01 work with VCM II Clone?

A: Some yes! It works with VCM II clone that can use VCI MANAGER 2.3.85.7 and above.

Q: Thanks for sharing but after I download, there is no active license?

A: When you open VM at first time, choose “I move it” and all will be OK!

Q: Is the internet not supposed to work?

When I start the VMWare, it said that some settings were changed. I restarted and the license was lost. So I reinstalled it again, still no internet but the license is working now?

A: Go to “Devices”, choose “Network Adapter NAT” and check the box “Connect at power on”. Look at below picture:

Ford VCM2 IDS Special Function, how to activate

With Ford VCM2clone with IDS, how to enable or activate Special Function in the menu Module Programming/Programmable Parameters/Car Configuration Parameter(s)? Here is the how-to guide from a CT member. It’s a customer experience; try at your own risk.

Ok just had a play and i managed to get to enter the code (here: 60274)

I found where IDS stores these codes:
C:\Program Files\Ford Motor Company\IDS\Runtime\Registry.xml
Under <key name="UPDATEFUNCTIONS">
Going to try them out.

Enter the code
00008 - IDENT_APPLY_PATCHES_VIA_FLOPPY
00009 - IDENT_UPDATE_PTU_FROM_FLOPPY
32287 - IDENT_LAUNCH_APP_MCP_REST
60503 - IDENT_LAUNCH_REGRESSION_RECORDER
27001 - IDENT_LAUNCH_FT_EOL_CP_MZ_01
32247 - IDENT_LAUNCH_SERVICE_ROUT
24040 - IDENT_ENABLE_VALIDATION_MODE
24041 - IDENT_DISABLE_VALIDATION_MODE
23761 - IDENT_LAUNCH_APP_FT_DATA_REC
81105 - IDENT_LAUNCH_APP_TSBSSMLIST
53061 - IDENT_IGNORE_MCP_INHALE
26503 - IDENT_LAUNCH_APP_VVAG
81104 - IDENT_LAUNCH_APP_FTW_SHIP_MODE_01
29124 - IDENT_TOGGLE_FORD_EXTRANET_INTRANET_URLS
60274 - IDENT_LAUNCH_CCC_ENGINEERING_APP
32227 - IDENT_LAUNCH_PROPSHAFT_BAL_APP
48712 - IDENT_LAUNCH_GENERIC_RCM_CONFIG_APP
28487 - IDENT_LAUNCH_FT_ICCMSP_MZ_01_APP
28097 - IDENT_TOGGLE_BATTERY_MONITORING
70263 - IDENT_LAUNCH_GENERIC_DIAG
71863 - IDENT_MCP1
63296 - IDENT_LAUNCH_FTW_RKE_MODE_01_APP
08080 - IDENT_LAUNCH_DETAILED_NETWORK_DIAG
32267 - IDENT_LAUNCH_APP_ENG_SUPPORT_TOOL

Enter the code 60274

It changes the ccc option in module programming to a different list with more options and also appeared to give me icons to read and write dumps,

But I ran out of time to play more and see what options did, I did try to disable my seat belt off warning buzzer but it failed to work, Other peoples input would be nice once you test it...

See my photos, get the first page up as shown then click update/ special functions on your right hand side

As for getting nothing to appear in special function through VCM2 IDS, i had two option in there, read config file and modify, Also for me the tool box module programming, 3rd option down had changed to allow what i would normally alter within ccc as well as a as built option which i do not normally see on this year of car, It had speed items for one listed, were as this is found on later fords than mine in the pcm on first page.
